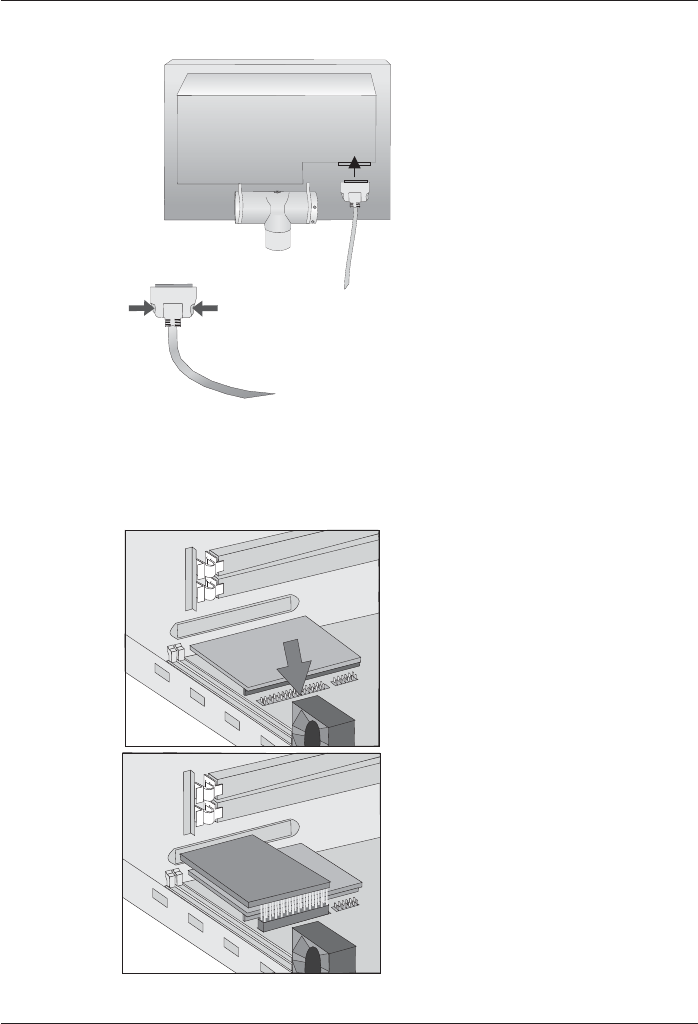

Now plug in the cable

until it snaps in (see il-

lustration).

When removing the

cable press on the

connector release.

Installing a LCD-TFT Adapter A

Never open the BEETLE /M when the circuit is switched on.

Plug in the TFT adapt-

er on the CPU module

via the sub module as

shown in the illustrati-

on. TFT adapter

Submodul

Installation TFT adapter

GB - 37
