STATUS INDICATORS

MISFEED REMOVAL

The copier will stop when a misfeed occurs. The misfeed ( ) indicator will blink

and blinking red misfeed location indicators will indicate the approximate misfeed

location.

If paper is accidentally torn during removal, be sure to remove all pieces.

Be careful not to damage the photoconductive drum.

First confirm the misfeed location.

Misfeed removal

(P. 43)

(P. 47)

(P. 44, 47)

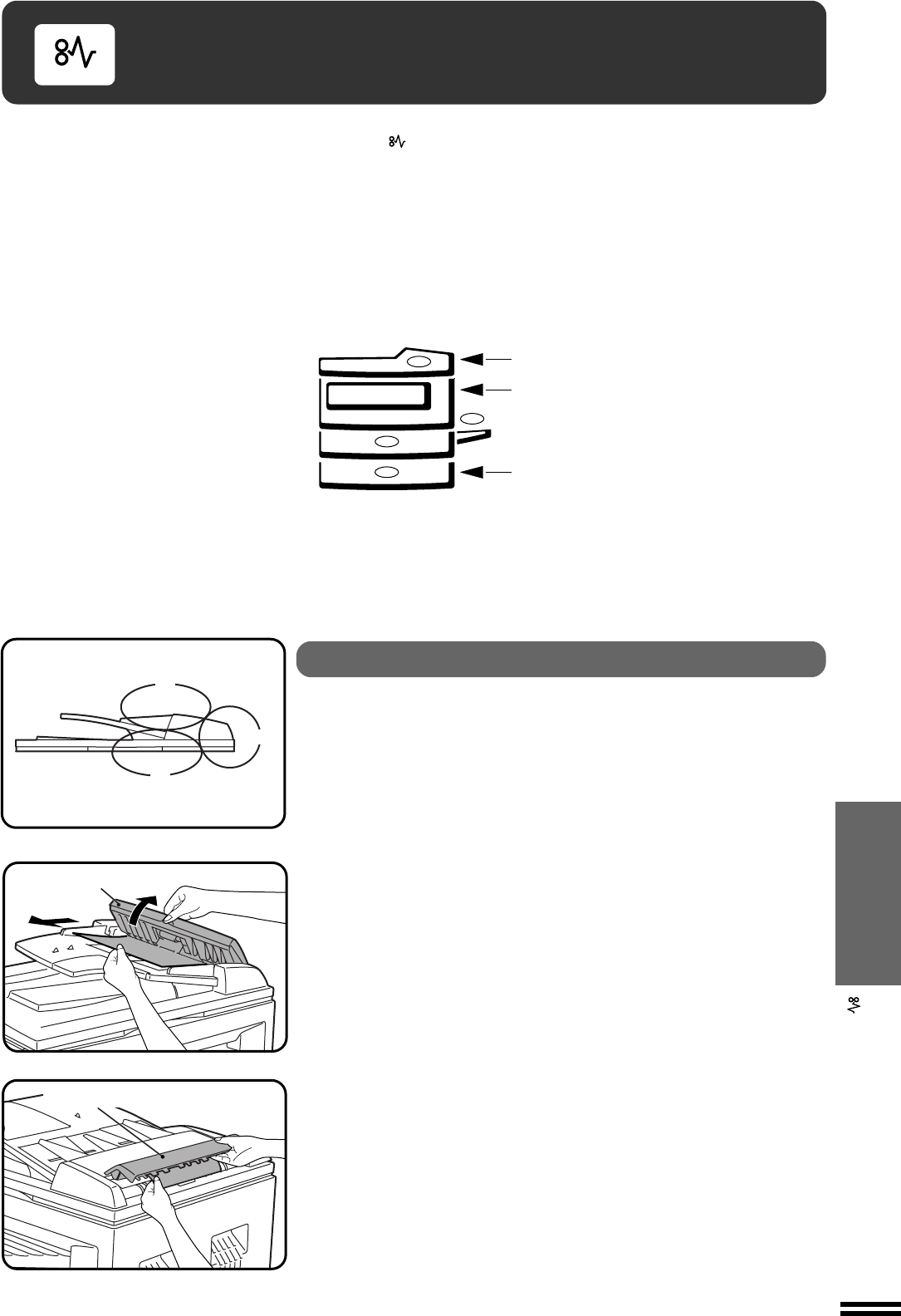

Misfeed in the SPF

If an original misfeed occurs in the SPF, the copier will

stop and the red indicator which indicates an original

misfeed will blink.

Open the feeding roller cover and pull the original gently

to the left and out from the document feeder tray. Close

the feeding roller cover.

If the misfed original cannot be removed in step 1, open

the right side cover and remove the misfed original.

Close the right side cover.

Feeding roller cover

Right side cover

Location A

Location B
