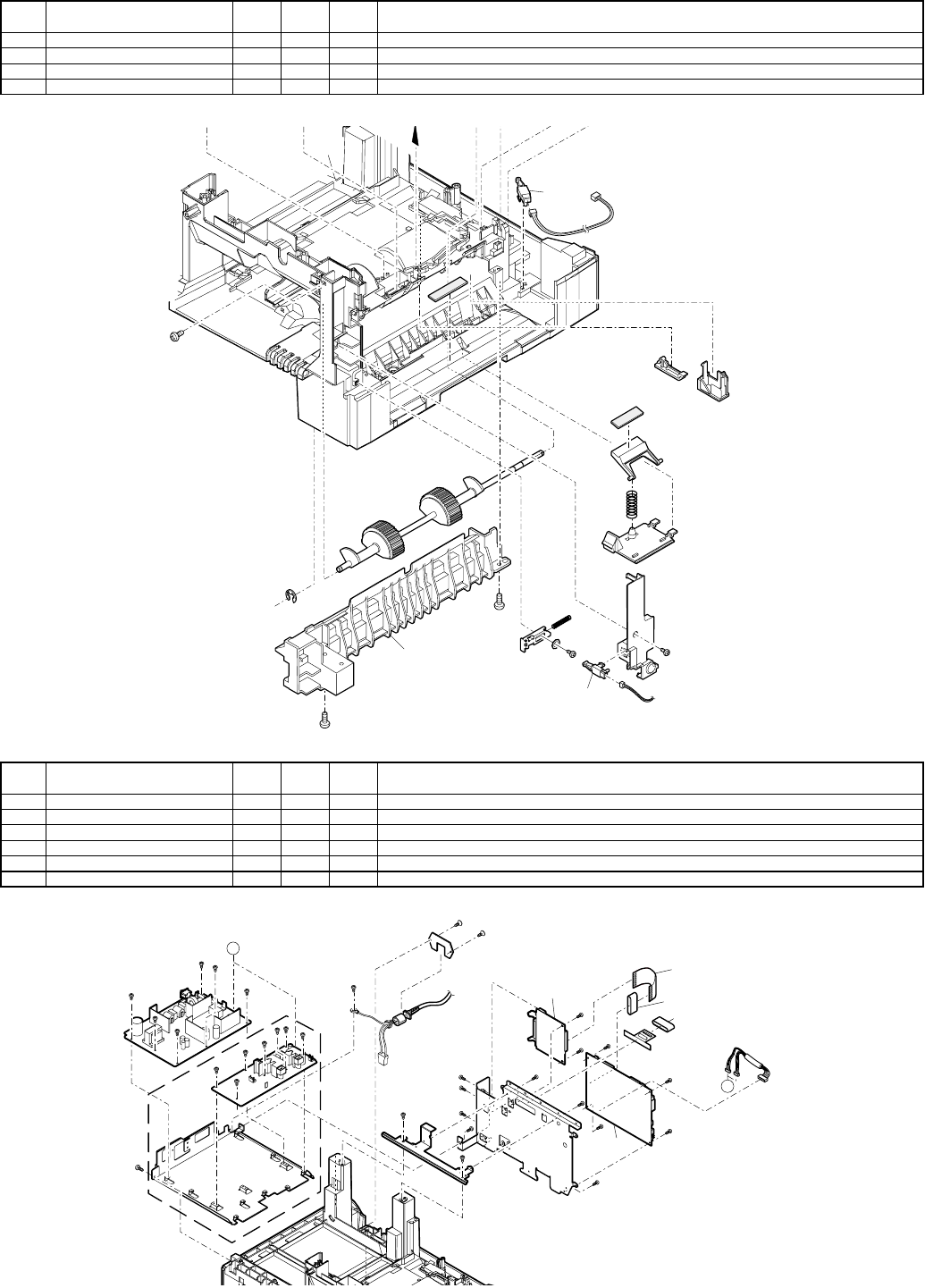

– 7 –

J

Base plate unit 1

J

Base plate unit 1

K

Base plate unit 2

K

Base plate unit 2

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PART

RANK

DESCRIPTION

26 QSW-B0017QSZZ AF B Tray detect switch

34 LRALP0001QSJ2 AM C Base plate rail R

NO. PARTS CODE

PRICE

RANK

NEW

MARK

PART

RANK

DESCRIPTION

4 CPWBX0121QS49 BY N E MCU PWB

5 CPWBF0114QSE1 BA E IF PWB (AL-1641CS/AL-1645CS)

7 DHAI-0283QSZZ AD C MCU-I/F harness (AL-1641CS/AL-1645CS)

31 RCORF0026QSZZ AE C Ferrite core (AL-1641CS/AL-1645CS)

PRP01814

26

34

26

PRP01815

A

A

31

4

5

7
