1 - 36

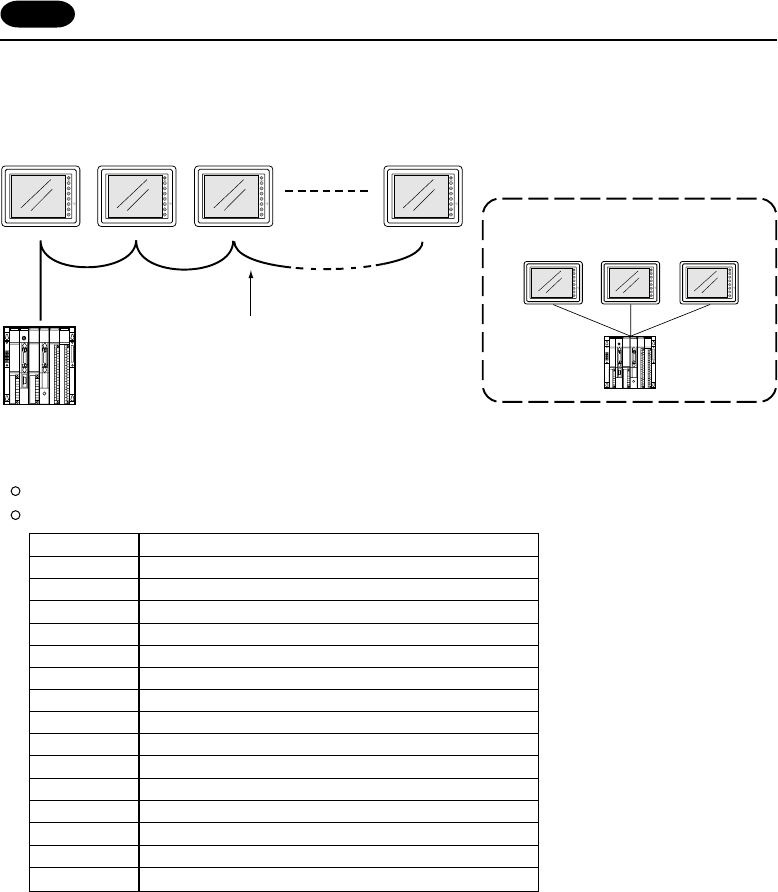

(2) Multi-link 2
Available PLCs for multi-link
When multiple ZM-** are connected to a link module of PLC
PLC
ZM-
**
1 ZM-
**
2 ZM-
**
3 ZM-
**
n
RS-485 Maximum length 500m
* The connections shown below
are not recommended.
Multiple ZM-
**
and a PLC are connected. (n=1 to 32)
Manufacturer
SHARP
MITSUBISHI
MITSUBISHI
OMRON
HITACHI
MATSUSHITA
YOKOGAWA
YASKAWA
TOYOPUC
FUJI
TOSHIBA
SIEMENS
SHINKO
SAMSUNG
LG
Models
JW series(JW-10CM, JW-21CM, Z-331J/332J, ZW-10CM)
AnN, AnA, AnU series, Net10, FX series (A prt)
QnA CPU port (with ZM-1MD2)
SYSMAC C series, CV series
HIDIC-H
MEWNET
FA-M3
Memobus
TOYOPUC
MICREX-F, NJ computer link
T series
S7-200 PPI
SELMART
SPC series, N pius, SECNET
MASTER-K500 / K1000
1 Connection
In case of Sharp Corporation, only the link module correspondences to multi-link connection.
(The communication port etc. does not correspond.)
