AR-168N/168L DISASSEMBLY AND ASSEMBLY 8 - 25

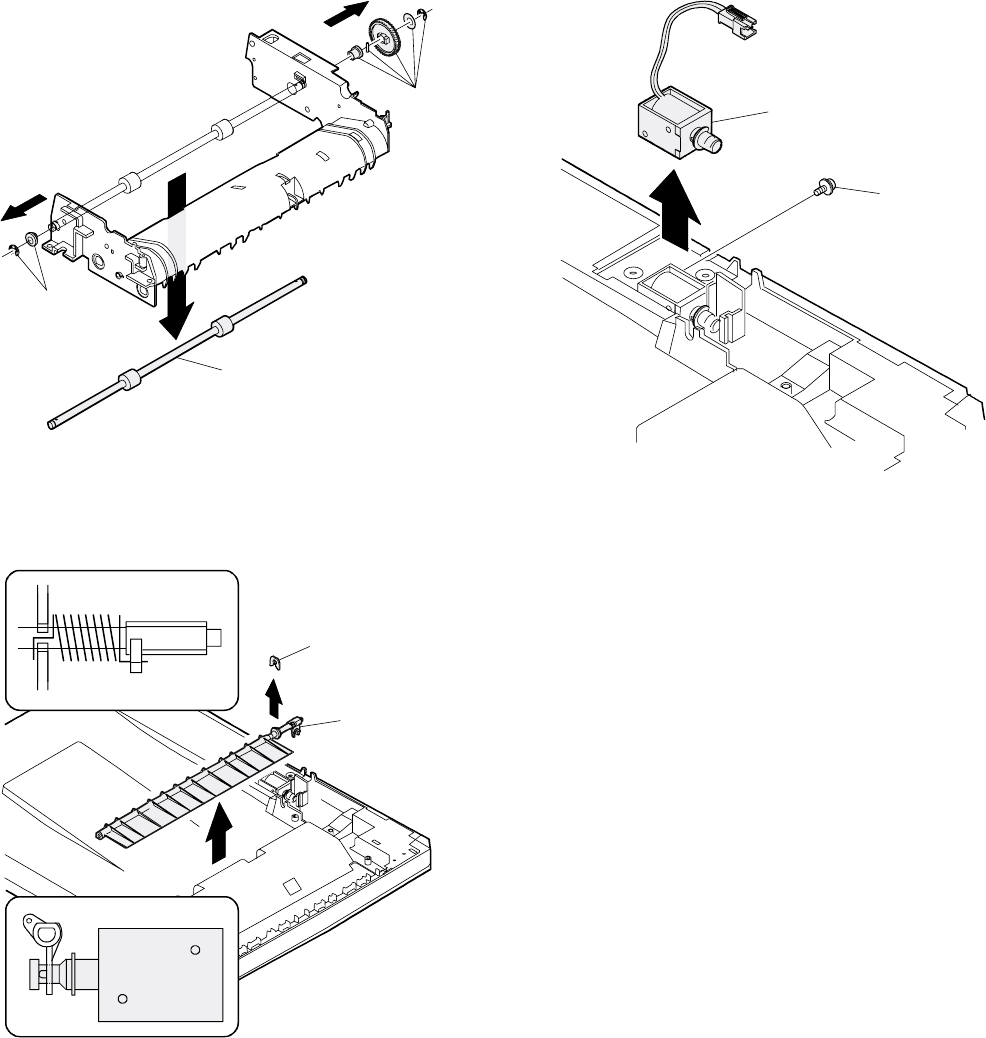

(3) Remove the paper exit roller.

1) Remove the parts.

2) Remove the paper exit roller.

T. Solenoid

(1) Remove the reverse gate

1) Remove the ring

2) Remove the reverse gate

Note: When reassembling, be careful of the groove and the hole

positions of the spring.

Note: When reassembling, hang 2) on the solenoid.

(2) Remove the solenoid.

1) Remove the screw.

2) Remove the solenoid.

08_DISSASEMBLY.fm 25 ページ２００５年１１月１８日金曜日午後５時３３分
