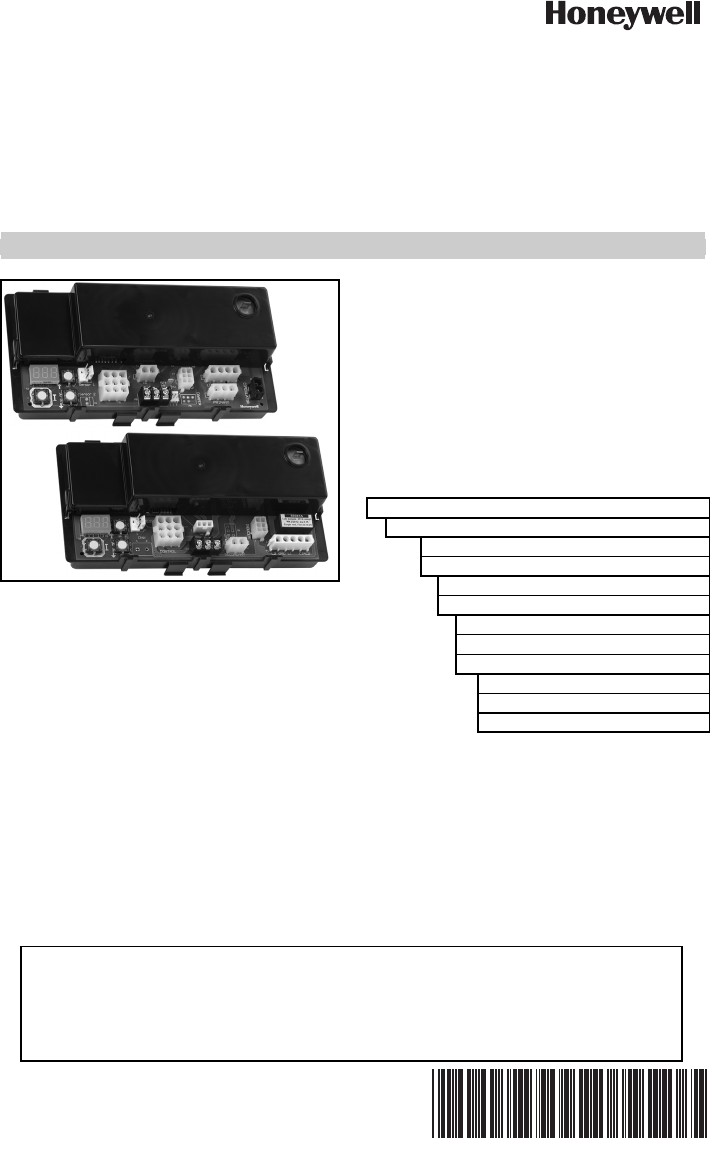

INSTALLATION INSTRUCTIONS

66-1203-03

S9360A, S9361A,

S9380A, S9381A

Integrated Boiler Controllers

APPLICATION

These integrated boiler control modules provide ignition

sequence, flame monitoring and safety shutoff for

intermittent pilot spark ignition, or direct spark ignition

heating systems. They also provide limit rated water

temperature control with one or two sensors and display

interface capability for either “on-board” or remote user

interface applications.

• S9360A—Spark Ignition, Intermittent Pilot, Remote

Display.

• S9361A—Spark Ignition, Intermittent Pilot, “On board”

Display.

• S9380A—Direct Spark Ignition, Remote Display.

• S9381A—Direct Spark Ignition, “On board” Display.

• Enabled with EnviraCOM™ communication capability

to support remote monitoring and diagnostics.

• Limit-rated Temperature Sensing Probe.

• Ignitor sensor type

— two rod (separate ignitor and sensor)

— one rod (combined ignitor and sensor)

SPECIFICATIONS

IMPORTANT:

The specifications given in this publication do

not include normal manufacturing tolerances.

Therefore, an individual unit may not match the

listed specifications exactly. Also, this product is

tested and calibrated under closely controlled

conditions, and some minor differences in

performance can be expected if those

conditions are changed.

Model Numbers

S—Switching Control

93—Integrated Hydronic Control Platform

6—Spark Ignition

8—Direct Spark Ignition

0—Remote Display Required

1—Integrated On-Board Display

A—Boiler Control

B—Water Heater Control

C—Pool Heater Control

1—No Circulator

2—On/Off Circulator

3—On/Off Circulator meeting CSD-1

2012 DOE Compliance and Operation

Operation of this control may delay the burner operation while the residual heat is circulated

out of the boiler.

NOTE: This operation may be different than earlier integrated boiler control

revisions which did not implement thermal purge.

1 2 3 4 5 6 ... 19 20

Podsumowanie treści

Strona 1 - Integrated Boiler Controllers

INSTALLATION INSTRUCTIONS66-1203-03S9360A, S9361A, S9380A, S9381A Integrated Boiler ControllersAPPLICATIONThese integrated boiler control modules prov

Strona 2 - 66-1203—03 2

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 10State Code DefinitionsFor induced draft - state codes from 1–17;For atmospher

Strona 3 - INSTALLATION

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS11 66-1203—03Temperature ControlTemperature control setpoint on the module can be adjusted

Strona 4 - INSTALLATION AND

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 12Integrated Boiler Control Model DisplaysSee Table 6 for the IBC display scree

Strona 5 - 5 66-1203—03

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS13 66-1203—03Mounting Sensor and ThermowellThe remote upper temperature sensor is installe

Strona 6 - Versions

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 14Fig. 11. Operating Sequence.Table 7. Thermal Purge Settings.Parameter name Mi

Strona 7 - Wiring Detail

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS15 66-1203—03TROUBLESHOOTINGIMPORTANT1. The following service procedures are provided as a

Strona 8 - 66-1203—03 8

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 16Table 8. Error Codes.Segment Display DefinitionErr 2Pressure Switch failed to

Strona 9 - 9 66-1203—03

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS17 66-1203—03Fig. 12. Examples of unsatisfactory pilot flames.LAZY YELLOW FLAMEWAVING BLUE

Strona 10 - State Code Definitions

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 18

Strona 11 - “On-Board” Display

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS19 66-1203—03

Strona 12 - LOCATION AND MOUNTING

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 2Dimensions:See Fig. 1.Fig. 1. S936X Integrated Boiler Controller, dimensions i

Strona 13 - OPERATION AND CHECKOUT

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERSAutomation and Control SolutionsHoneywell International Inc.1985 Douglas Drive NorthGolden

Strona 14 - 66-1203—03 14

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS3 66-1203—0314,000,485-016 1/4 in. (6.35 mm) diameter, 1-1/4 in.(31.75 mm) length glass ca

Strona 15 - TROUBLESHOOTING

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 4INSTALLATION AND CHECKOUTWhen Installing This Product…1. Read these instructio

Strona 16 - 66-1203—03 16

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS5 66-1203—03Fig. 2. Recommended slot/hole pattern in appliance (in mm).Fig. 3. Align modul

Strona 17 - APPEARANCE

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 6WIRINGWARNINGElectrical Shock Hazard.Can cause severe injury, death or propert

Strona 18 - 66-1203—03 18

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS7 66-1203—03Wiring DetailFig. 4. Spark-to-Pilot Ignition Wiring (S936X), 2-rod (separate i

Strona 19 - 19 66-1203—03

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS66-1203—03 8Fig. 5. Direct Spark Ignition (DSI) Wiring (S938X), 1-rod (combined ignitor an

Strona 20 - Golden Valley, MN 55422

S9360A, S9361A, S9380A, S9381A INTEGRATED BOILER CONTROLLERS9 66-1203—03Fig. 6. Spark to Pilot Ignition (S936X), 1-rod (combined ignitor and sensor).M
