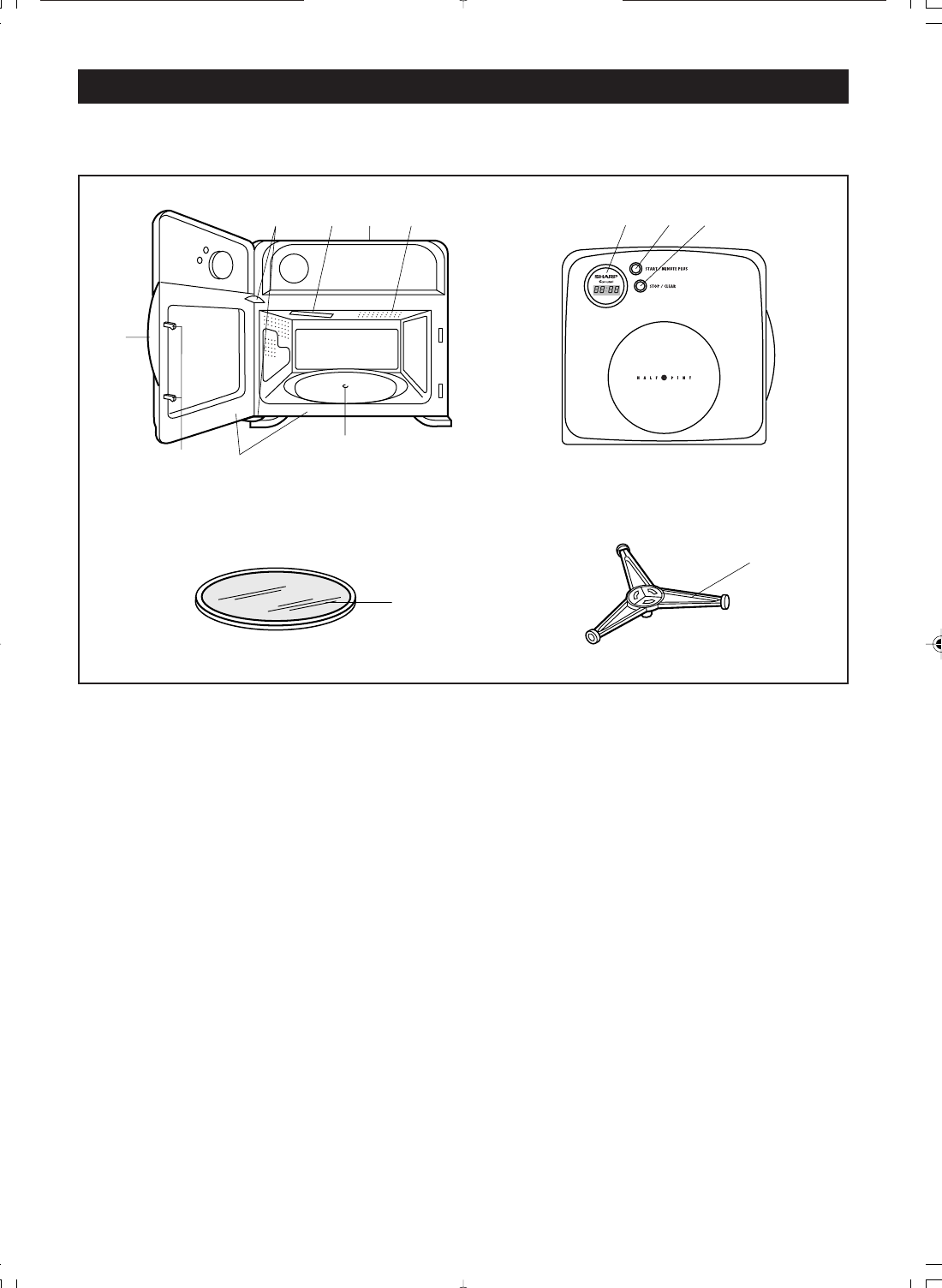

PART NAMES

1 Safety door latches

The oven will not operate unless the door is securely closed.

2 Door hinges

3 Door seals and sealing surfaces

4 Door handle

Pull to open door.

5 Turntable motor shaft

6 Removable turntable support

7 Removable turntable

Place the turntable on the turntable support securely. The turntable will rotate clockwise or

counterclockwise. Only remove for cleaning.

8 Ventilation openings (Rear)

9 Oven light

It will light when oven is operating.

10 Waveguide cover: DO NOT REMOVE.

11 Control panel display

12 Start/Minute Plus pad

13 Stop/Clear pad

MICROWAVE OVEN PARTS

DOOR CLOSEDDOOR OPEN
