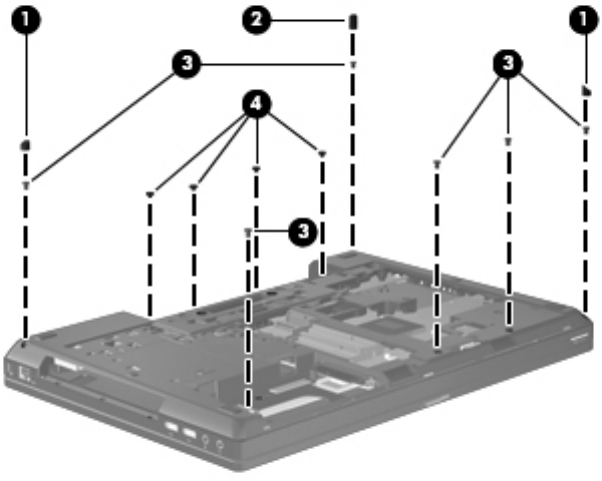

2. Remove the following covers and screws that secure the bottom cover to the computer:

(1) 2 small rubber screw covers

(2) 1 large rubber screw cover

(3) 6 Torx PM2.5×6.0 screws

(4) 4 Phillips PM2.5×3.0 screws from the battery bay

3. Remove the following screws that secure the bottom cover to the computer:

(1): 2 Phillips PM2.0×4.0 screws from the hard drive bay

(2): 3 Phillips PM2.0×3.0 screws from the optical drive bay

(3): 2 Torx PM2.5×10.0 screws near the docking connector

96 Chapter 4 Removal and replacement procedures
