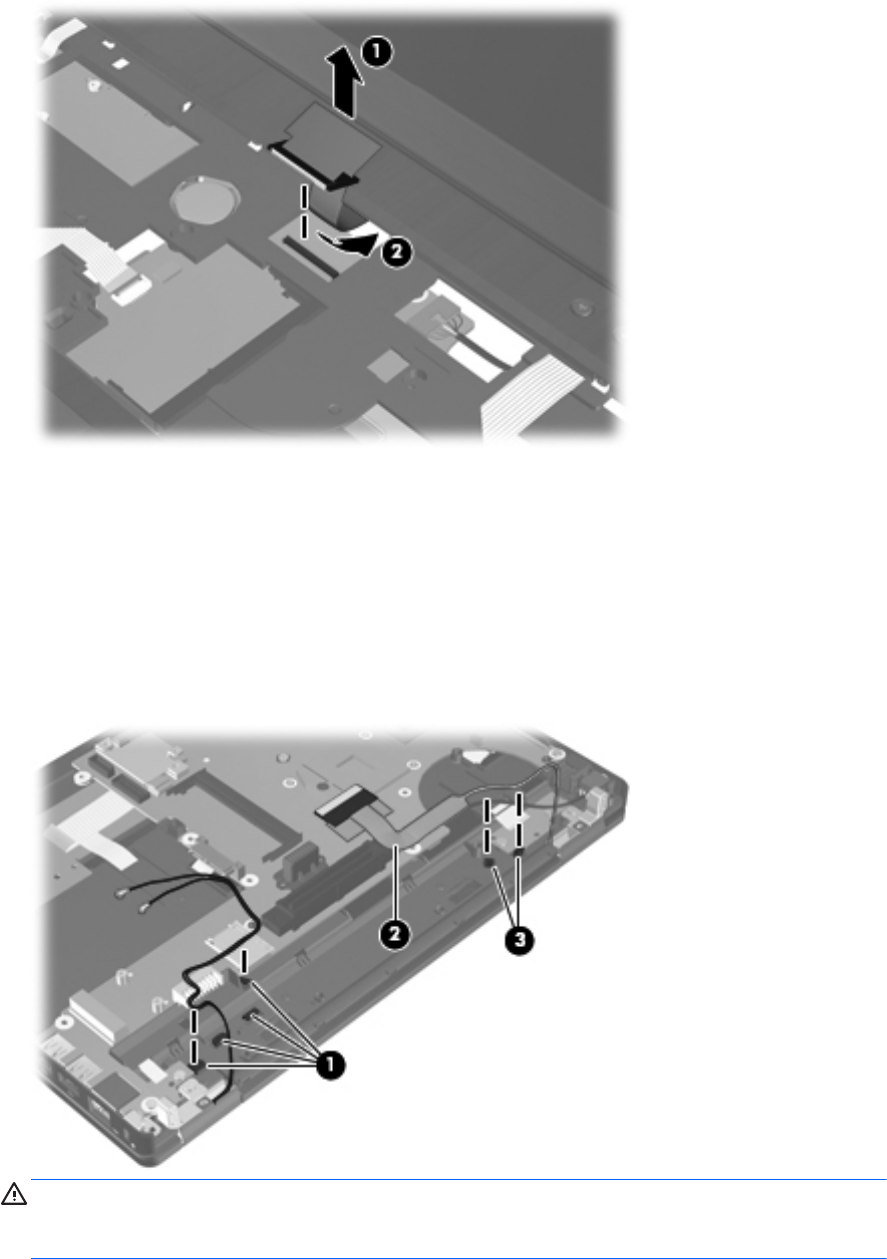

Release the display panel cable through the opening (2) in the top cover.

5. Close the computer.

Turn the computer upside down, with the rear panel toward you.

7. Release the wireless antenna cables from the clips (1) built into the base enclosure.

Release the display panel cable (2) from the top cover. (The display panel cable is attached to

the top cover with double-sided tape.)

9. Release the display panel cable from the clips (3) built into the top cover.

CAUTION: Support the display assembly when removing the following screws. Failure to

support the display assembly can result in damage to the display assembly and other

computer components.

Component replacement procedures
