.TROUBLESHOOTING AND MAINTENANCE

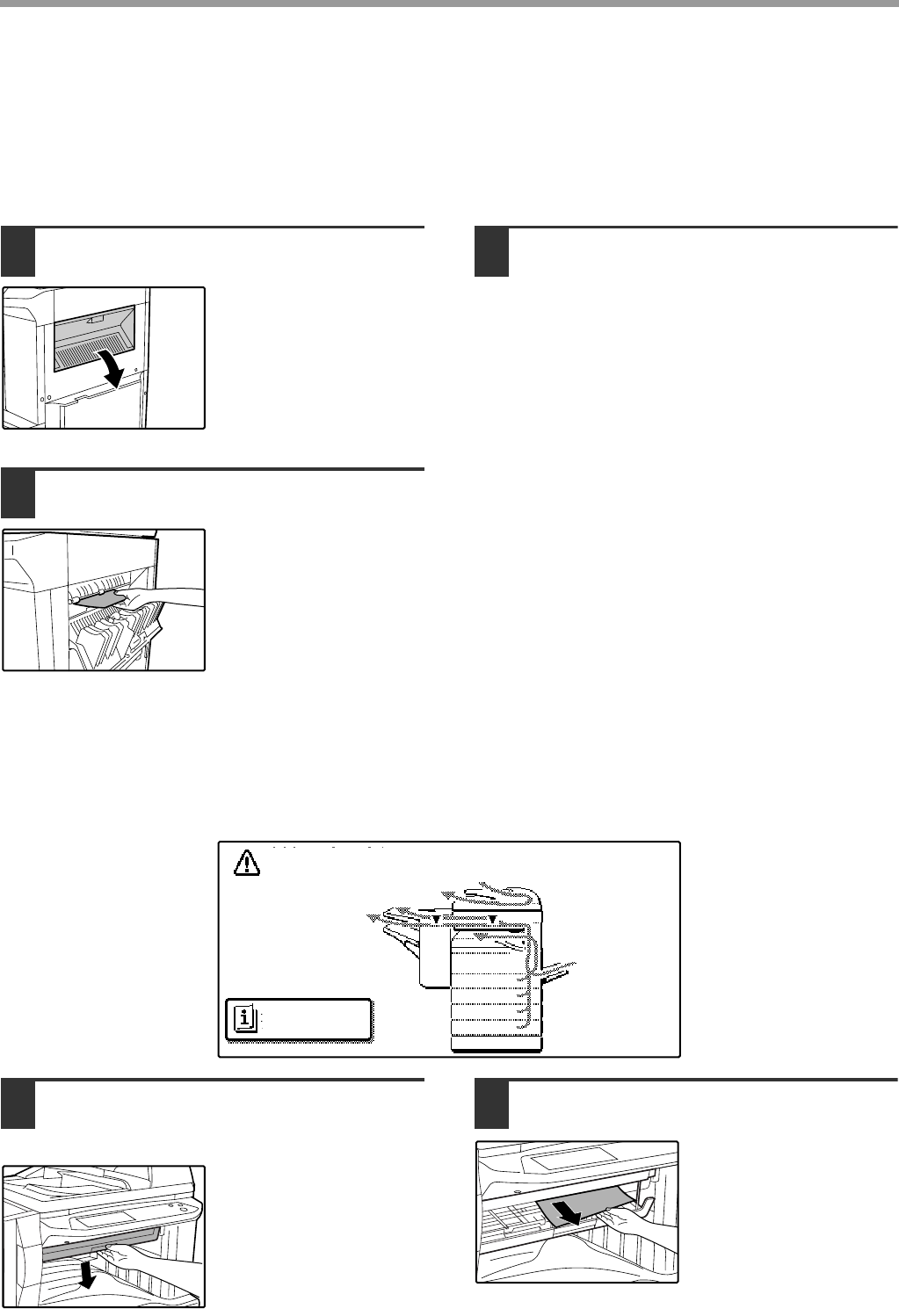

MISFEED IN THE UPPER EXIT AREA

(when a job separator tray kit or finisher (AR-FN5N) is

installed)

If a job separator tray kit or a finisher is installed, a misfeed may occur in the upper exit area.

Open the upper right side cover.

Gently pull the misfed paper out.

Be careful not to tear the

misfed paper during

removal.

Close the upper right side cover.

Make sure that the misfeed message is cleared.

MISFEED IN AN OUTPUT TRAY

(when a finisher (AR-FN5N) is installed)

Grasp the handle of the stapler

compiler cover and pull to open the

cover.

Remove any misfed paper from the

transport area.

A MISFEED HAS OCCURRED.

INFORMATION
