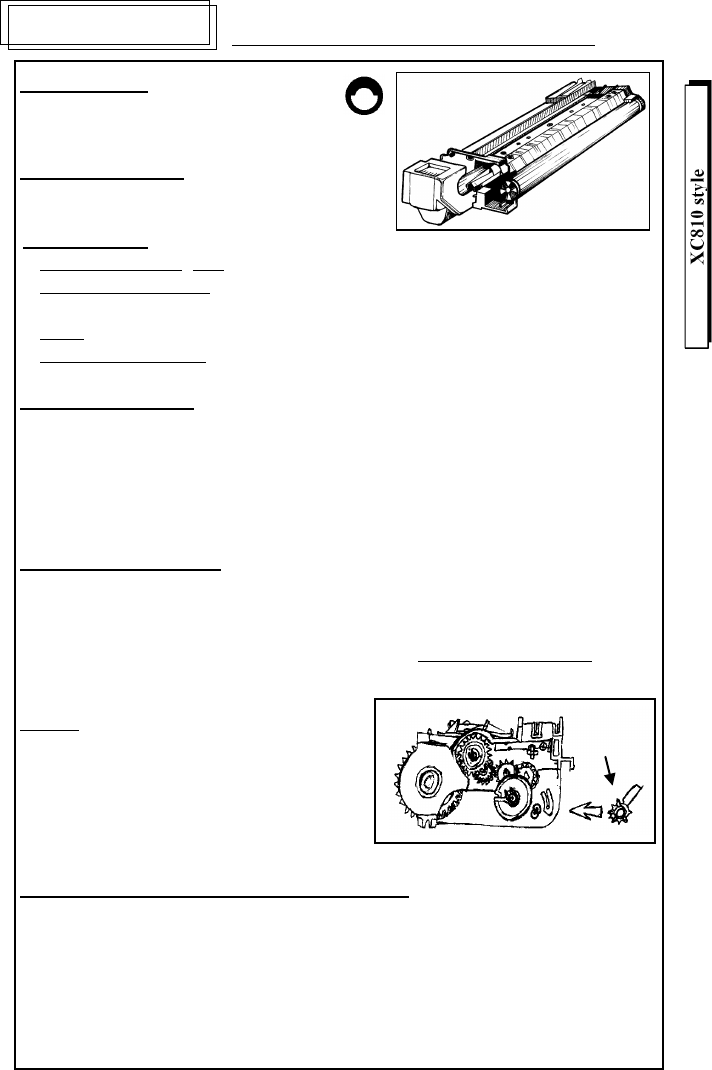

XC810 style CTG. RECONDITIONING

XC-810 style Copy Cartridges:

XC-810/11/20/22/30/40/55/65/75,

XC-1020/33/40/44/45, XC-1245/50/55

Available Parts: (see p. 131)

Drums/Blades

Information:

Full Instructional: free on our Website

Related Status Codes:

Drum Indicator Light on (far left, looks like ½ circle in a circle)

Yield: 12,000 copies (w/ 1,000 copy flashing warning light)

OEM “Reorder #’s” 13R544(US), 13R547(RX)

Basic Procedure: (full instructional on our Website)

 Disassemble… drum comes out by turning the front hub ¼ turn clockwise

& then pulling it straight out.

 Clean up the cartridge, clean the Corona Unit w/ compressed air.

 Inspect the drum & blade, Replace if needed.

 Reassemble.

Drum Count Reset:

When you install a new XC drum cartridge, it is equipped with a Reset

Mechanism* which is designed to trip a photosensor in the machine to reset the

drum count. This Reset Mechanism looks like a little gear with a flag sticking

off of it. It is located on the rear of the cartridge (shown off to the right

in the

illustration below). You must remove & re-position the ‘Flag’ gear at the “1

o’clock” position as shown.

NOTE: If the cartridge is missing

the Reset Mechanism, the cartridge

is most likely a ‘Starter Cartridge’

which came with the machine at

purchase time. If this is the case, you’ll

need to reset the drum count from

diagnostics as explained below.

Drum Count Reset (from Diagnostics)

First enter diagnostics: Turn power on and within 4 seconds press the following

sequence: ‘Clear’, ‘Exposure Mode’, ‘Clear’,’Exposure Mode’ (Exposure

Mode is the button on the far left)… The entire display including the numerics

will go totally blank. To reset the drum count to 0: (24-7).

Select 24, press ‘Start’, Select 7, press ‘Start’. Then turn power off & back on.

p.132

The Parts Drop (201)387-7776 ... www.partsdrop.com

* Reset

Mechanism
