MAIL-BIN STACKER
The mail-bin stacker has 7 mail bins which can each be designated to receive printed output from a user or a group of
users .
Output paper in the copy mode and the fax mode will be delivered to the top tray of the stacker separated from printed
output. (Printed output can also be delivered to the top tray.)

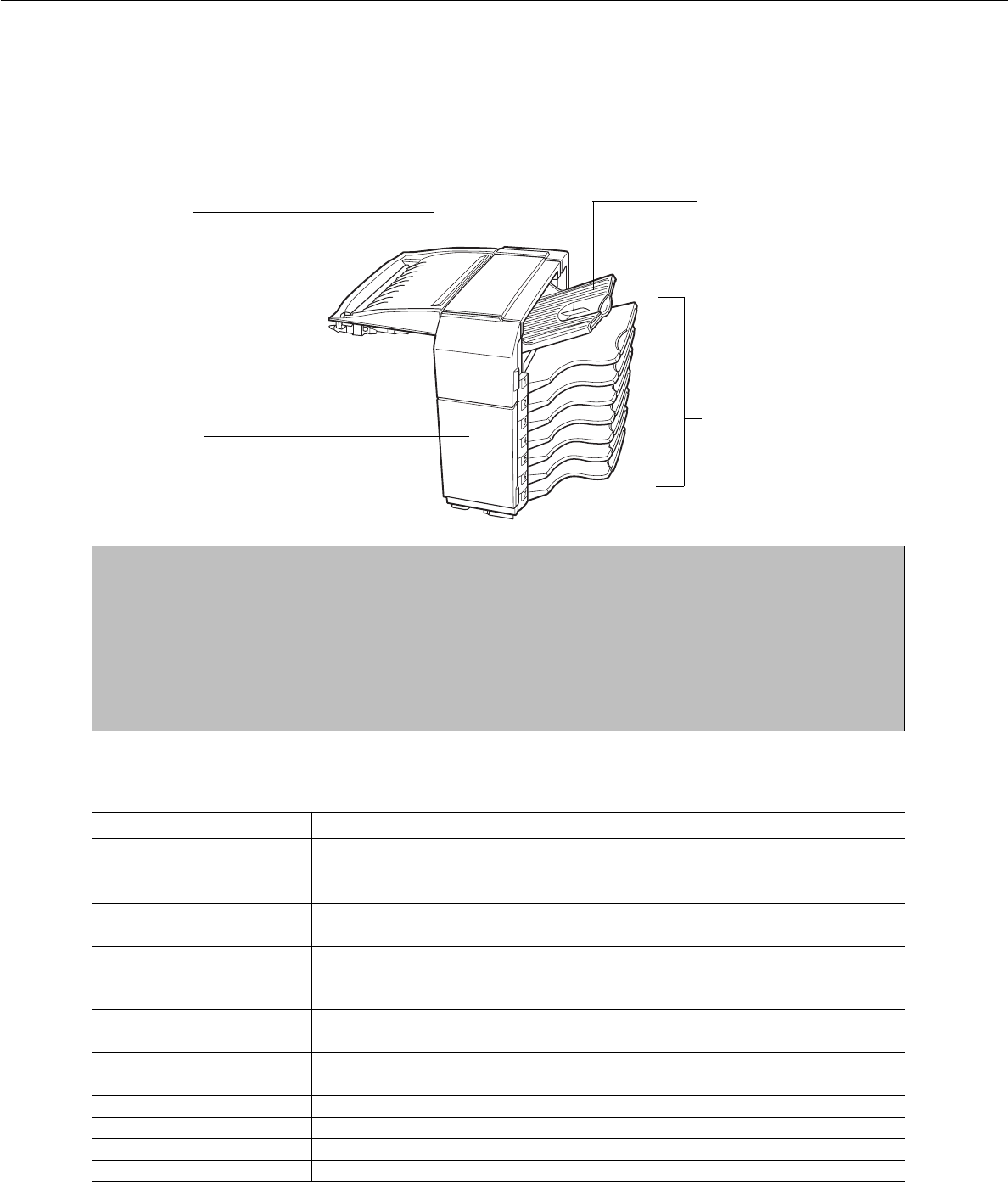

Part names
Front cover
Open for misfeed removal.
Top cover
Open for misfeed removal.
Top tray
Output paper from the printer,
copier, and facsimile features
can be delivered here.
Mail bins
Each bin can be designated
to receive printed output for
assigned users. These bins
cannot be used for copier or
facsimile output.
NOTES
●
Do not put pressure on the mail-bin stacker, particularly on the top tray and mail bins.
●
Do not place anything on the top cover. Doing so will interfere with the machine’s paper handling during duplex
printing.
●
The top tray and each mail bin are extendable. To print onto large paper (11" x 17", 8-1/2" x 14", 8-1/2" x 13",
A3 or B4), extend the tray.
●
The mail-bin stacker requires the installation of other peripheral devices in order to be functional and cannot be
installed together with some other devices. The table on page 6-4 shows the configurations which are compatible.
Specifications
Name Mail-bin stacker
Number of trays 8 (Top tray and seven mail bins)
Paper output Print face down
Tray type Top tray: normal tray, Mail bins: mail bin tray
Tray capacity Top tray: 250 sheets (8-1/2" x 11" or A4 size, 20 lbs. or 80 g/m
2
)
Mail bins: 100 sheets each (8-1/2" x 11" or A4 size, 20 lbs. or 80 g/m
2
)
Paper sizes Top tray: same as the specifications of paper for feeding in the main unit
Mail bins: 11 x 17, 8-1/2 x 14, 8-1/2 x 13, 8-1/2 x 11, 8-1/2 x 11R, 7-1/4 x 10-1/2,
A3, B4, A4, A4R, B5, B5R
Paper weight Top tray: same as the specifications of paper for feeding in the main unit
Mail bins: 15 to 34 lbs. or 60 to 105 g/m
2
Paper types Top tray: same as the specifications of paper for feeding in the main unit
Mail bins: plain paper only
Tray full detection Provided in both the top tray and the mail bins
Power supply Requires the installation of an optional power supply unit (See page 1-8.)
Dimensions 18-5/16" (W) x 20-7/8" (D) x 20" (H) (465 mm (W) x 530 mm (D) x 508 mm (H))
Weight Approx. 41.9 lbs. (19 kg)
Specifications are subject to change for improvement without notice.
