Source Components
Multisim Component Reference Guide 1-8 ni.com

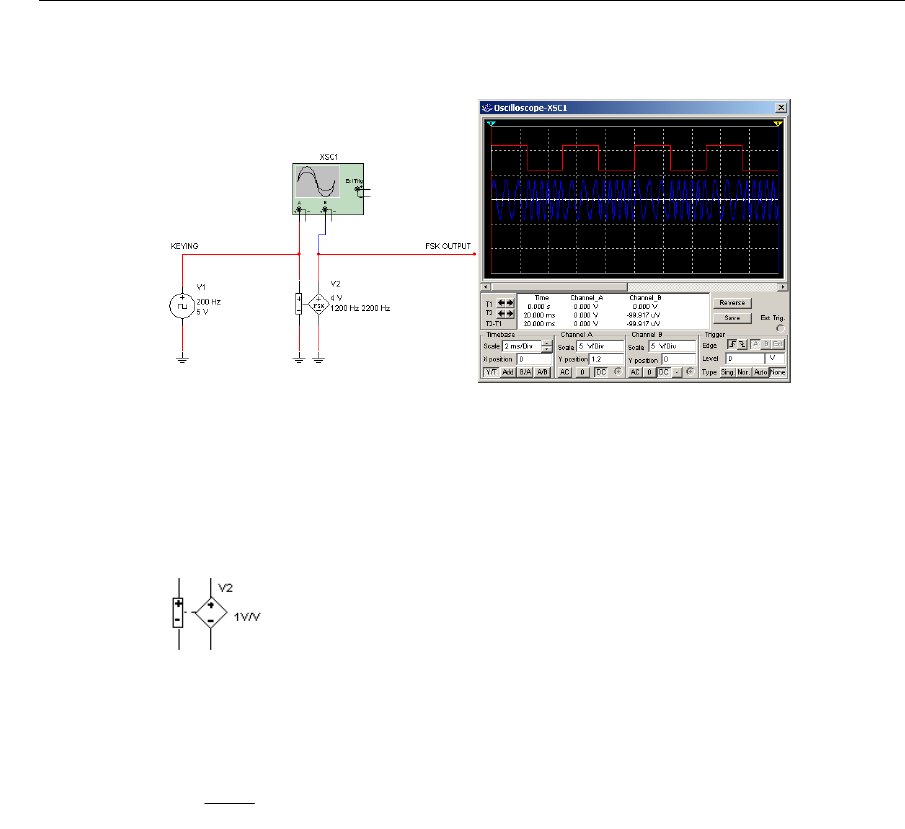

When the keying input is 5V, a MARK frequency of 1200 Hz is output. When keying voltage
is 0V, a SPACE frequency of 2200 Hz is output.
This component is a square wave generator. You can adjust its voltage amplitude, duty cycle
and frequency.
1.12 Voltage-Controlled Voltage Source
The output voltage of this source depends on the voltage applied to its input terminal. The
ratio of the output voltage to the input voltage determines its voltage gain (E). Voltage gain
can have any value from mV/V to kV/V.
E
V
V
OUT
IN
=
ComponentRef.book Page 8 Thursday, December 7, 2006 10:12 AM
